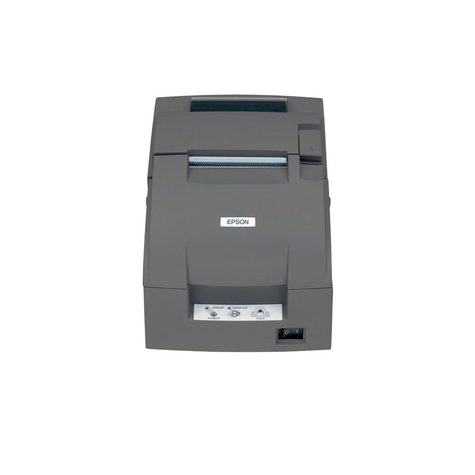

EPSON TM-U220B (057A0) USB Dot Matrix Receipt Printer

Details

EPSON

Epson’s TM-U220 impact printers are compact, reliable and optimized for high-speed throughput. They offer all the easy-to-use features important to the retail, restaurant and hospitality industries and two-color printing to highlight special offers, kitchen orders and impactful logos. In addition, the TM-U220 printers have been designed to be 100% compatible with existing systems that currently use a TM-U200 printer.

compact, reliable and optimized for high-speed throughput. They offer all the easy-to-use features important to the retail, restaurant and hospitality industries and two-color printing to highlight special offers, kitchen orders and impactful logos. In addition, the TM-U220 printers have been designed to be 100% compatible with existing systems that currently use a TM-U200 printer.

PRINT TYPE

Print method	9-pin serial impact dot matrix
Technology	Serial Impact Dot Matrix

FONTS & STYLES

Print Speed	4.70 lps (40 columns, 16.00 cpi)
Column capacity receipt	Paper width 76 mm, 33 / 40
Character size	1.2 mm (W) x 3.1 mm (H) / 1.6 mm (W) x 3.1 mm (H)
Character set	95 Alphanumeric, 48 International, 128 x 12 Graphic
Characters per inch	13.3 cpi / 16 cpi

PAPER

Paper Types	Receipt
Copy capability receipt	one copies plus one original
Paper size roll paper	76.00 ± 0.50 (W) mm x dia 83.00 mm, 69.50 ± 0.50 (W) mm x dia 83.00 mm, 57.50 ± 0.50 (W) mm x dia 83.00 mm

INTERFACES

Interfaces

Bidirectional parallel, Drawer kick-out, RS-232

POWER

Power Supply	PS-180
Operatingvoltage	24 V

GENERAL

Product dimensions	160‎ x 248 x 139 mm (Width x Depth x Height)
Product weight	2.5 kg
Colour	Epson Dark Gray / Epson Cool White
Installation	horizontally, vertically with wall hanging bracket
Interface connectors	D.K.D. function (2 drivers)
Noise Level	Operation: 64 dB (A)
Humidity	Operation 10% – 90%, Storage 10% – 90%
Temperature	Storage -10° C – 50° C

RELIABILITY

Reliability	18,000,000 MCBF (Lines), 180,000 MTBF (Hours)
Auto Cutter Life	800,000 Cuts
Printer Life	7,500,000 lines

STANDARDS COMPLIANCE

EMC Standards	CE marking
Safety standards	TÜV

OTHER FEATURES

Changeable interface	Yes
Cutter	Partial Cut
Sensors	Roll paper cover open sensor, Paper End Sensor, Paper Near End Sensor
